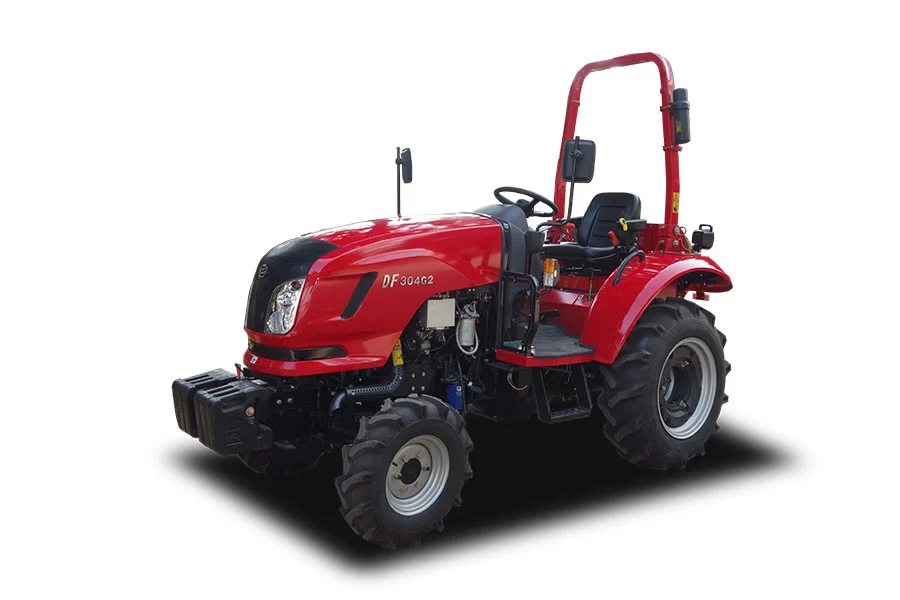

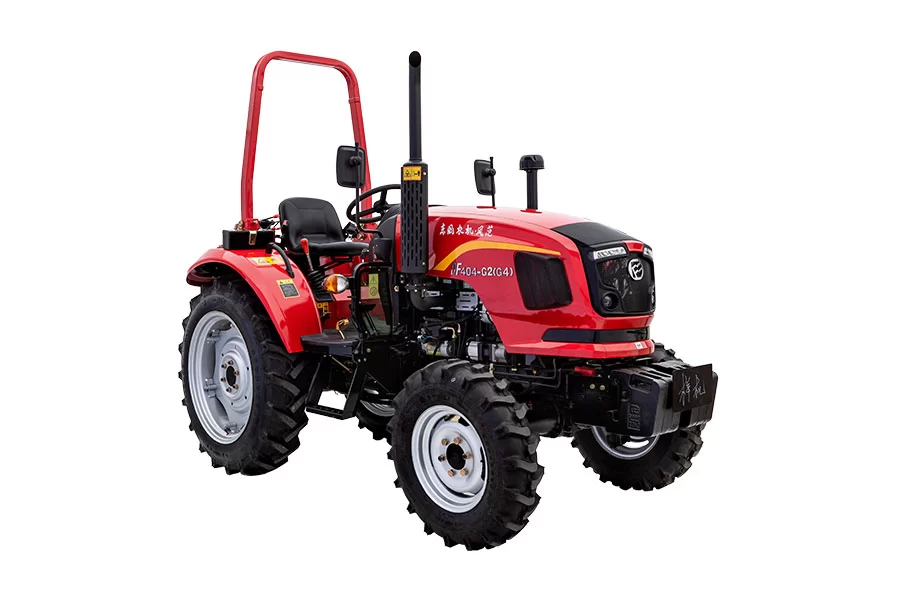

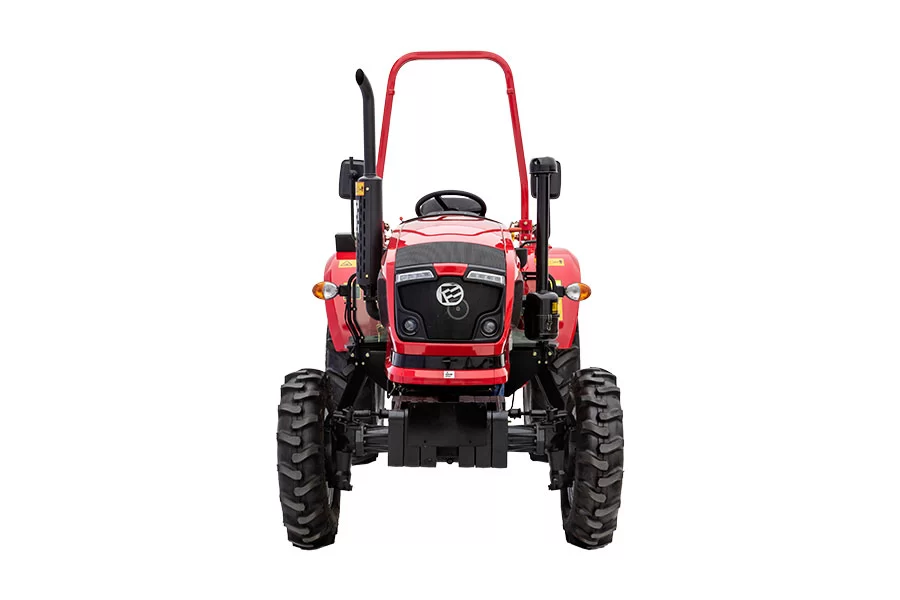

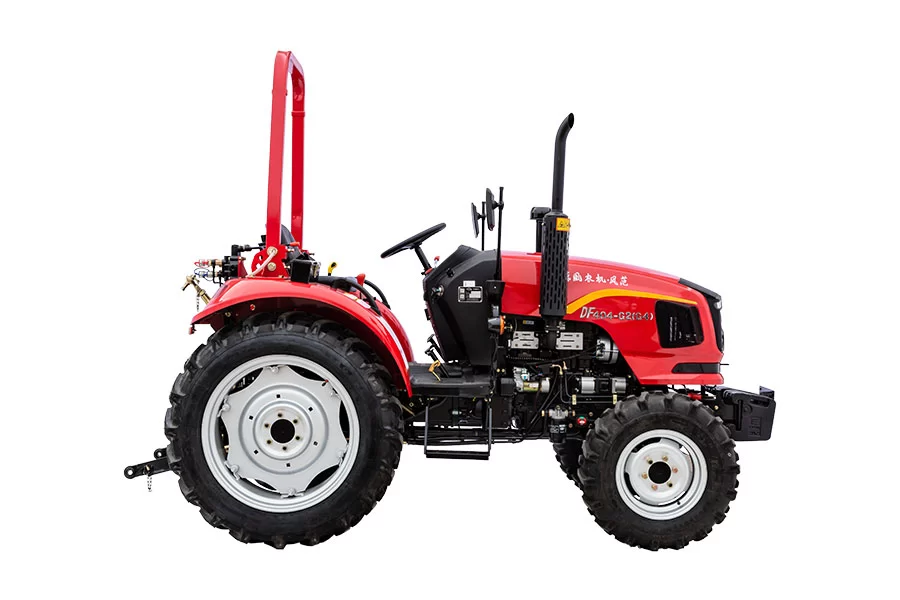

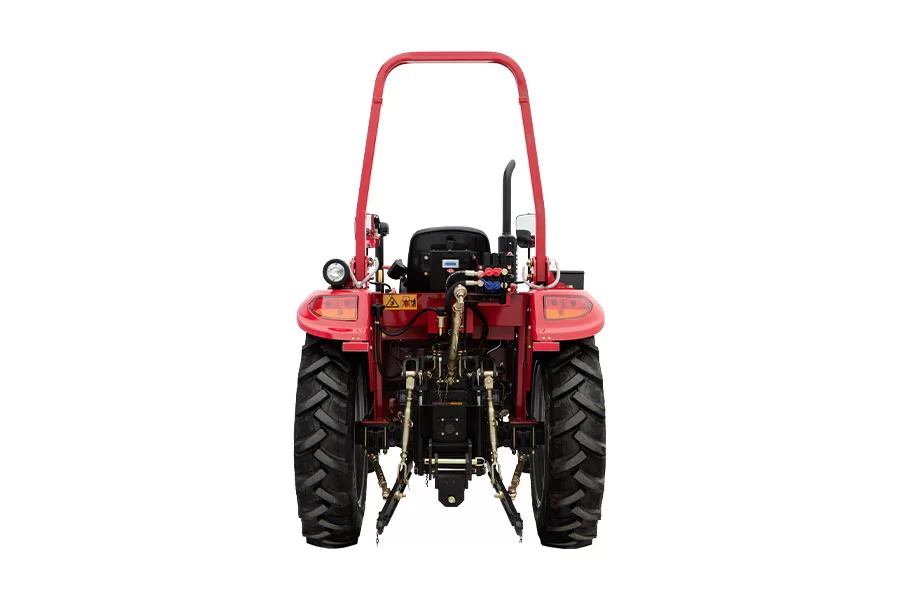

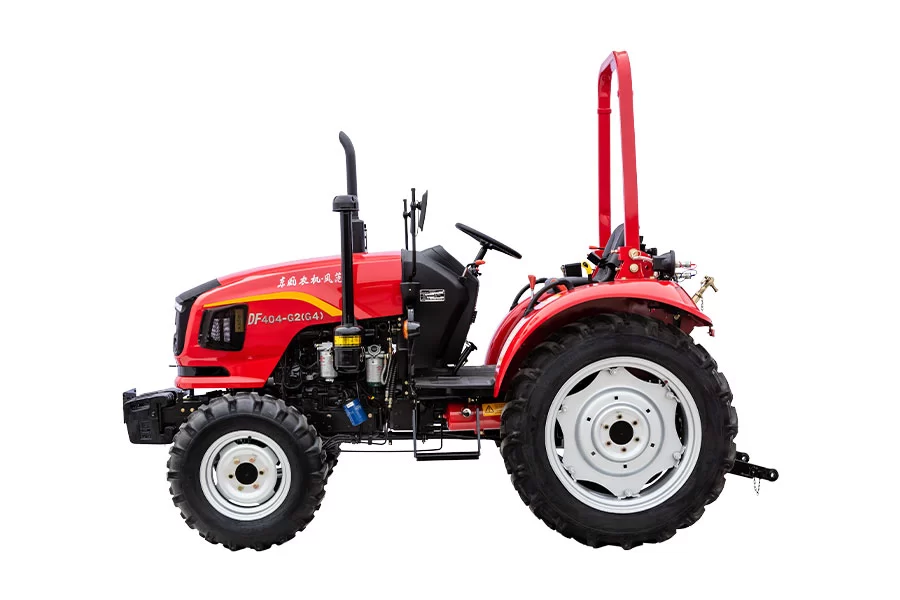

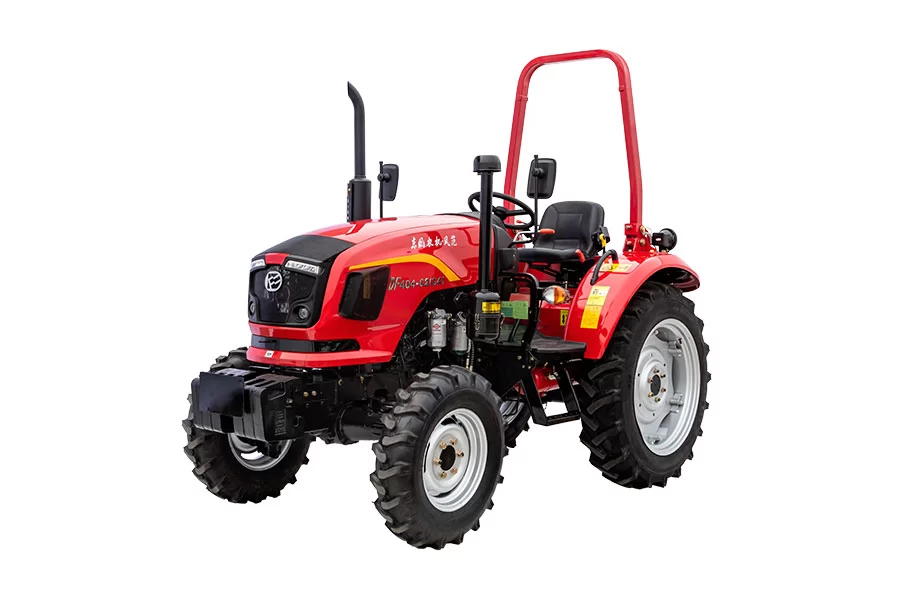

Série G2 DF 254G2/DF 304G2/DF 404G2/DF504G2
| Model | DF-254G2 | DF-304G2 | DF-404G2 | |||
|---|---|---|---|---|---|---|
| Tractor Parameters | Drive Type | 4WD | ||||
| Overall Dimensions L×W×H(mm) | 3380×1530×1520 | 3515×1575×1590 | ||||
| Construction Mass (kg) | 1650 | 1650 | 1780 | |||
| Theoretical speed (km/h) | Forward | 1.44, 2.17, 3.48, 5.04, 7.44, 11.24, 18.03, 26.10 | 1.48, 2.23, 3.58, 5.18, 7.66, 11.57, 18.56, 26.86 | |||
| Reverse | 1.45, 2.18, 3.50, 5.07, 7.49, 11.32, 18.16, 26.28 | 1.49, 2.25, 3.61, 5.22, 7.71, 11.65, 18.69, 27.05 | ||||
| Engine Specifications | Type | 3-cylinder, Vertical, in-line cylinder arrangement, radiator cooling, 4-stroke cycle | 4-cylinder, Vertical, in-line cylinder arrangement, radiator cooling, 4-stroke cycle | |||
| Rated Power (kW) | 18.4 | 22.0 | 29.4 | |||
| Total Displacement (L) | 1.532 | 1.813 | 2.545 | |||
| Drive System | Clutch | Linkage type dual-function clutch | ||||
| Gear Box | (4+4)×2 Shuttle shift gear and synchromesh gearbox | |||||
| Traveling Mechanism | Tire | Front | 6.00-12 | 6.50-12 | 7.50-16 | |
| Rear | 9.5-24 | 11.2-24 | 12.4-24 | |||
| Steering Gear | Full Hydraulic power steering | |||||
| Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point (kg) | 432 | 496 | 665 | |
| 3-Point Suspension | Category: Ⅰ | |||||
| P.T.O. Shaft | Rotating Speed (rpm) | 540/1000 | ||||
| Spline Size | 6-ф35 Rectangular Spline | |||||
